Goal
Generate electrical and thermal energy without the use of conventional fuels by converting kinetic energy of a working fluid (air or water) into rotary motion.
Problem
Need for autonomous, fuel-free power generation and conversion of ambient kinetic energy (air molecules) into useful work.
Concept Summary

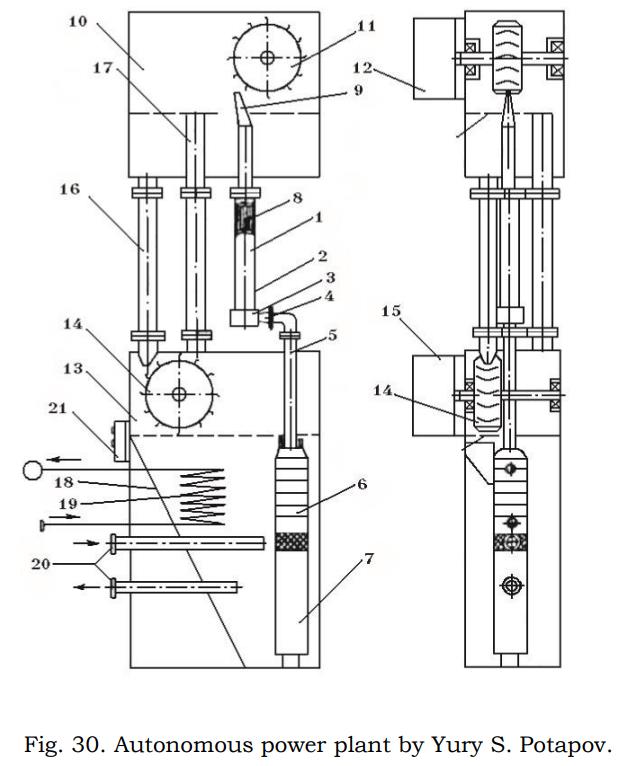

The scheme uses a swirl-generating cyclone or vortex chamber to accelerate a fluid (water or air). The high-speed jet exits through a nozzle and drives a turbine connected to an electrical generator. A second turbine in a lower tank extracts additional energy from the descending fluid. The design relies on centrifugal compression, Bernoulli-type pressure rise, and laminarization of the flow, aiming to produce electricity and heat without external fuel, only requiring a small electric fan to circulate the air.
Principles
- Centrifugal compression
- Bernoulli effect
- Vortex dynamics
- Laminarization of turbulent flow
- Swirl generation
Scientific Domains
Materials
- air
- water
- steel
- copper
- gas-liquid mixture
Mechanisms of Action
- Air (or water) is accelerated in a cyclone, creating a high-pressure vortex.
- The vortex jet drives a turbine, converting fluid kinetic energy into rotary mechanical energy.
- A secondary turbine extracts energy from the descending fluid in a lower tank.
- Passive duct reflectors redirect flow to increase generator output by 5-7 %.
Energy Sources
Applications
- Remote or off-grid electricity generation
- Heat production for industrial processes
- Supplemental power for vehicles
Claimed Performance
~= 3 kW of usable electrical power obtained with a 5 kW fan; fan power consumption reduced from 6-7 kW to 4-5 kW under load; reflectors increased generator output by 5-7 %.
Experimental Evidence

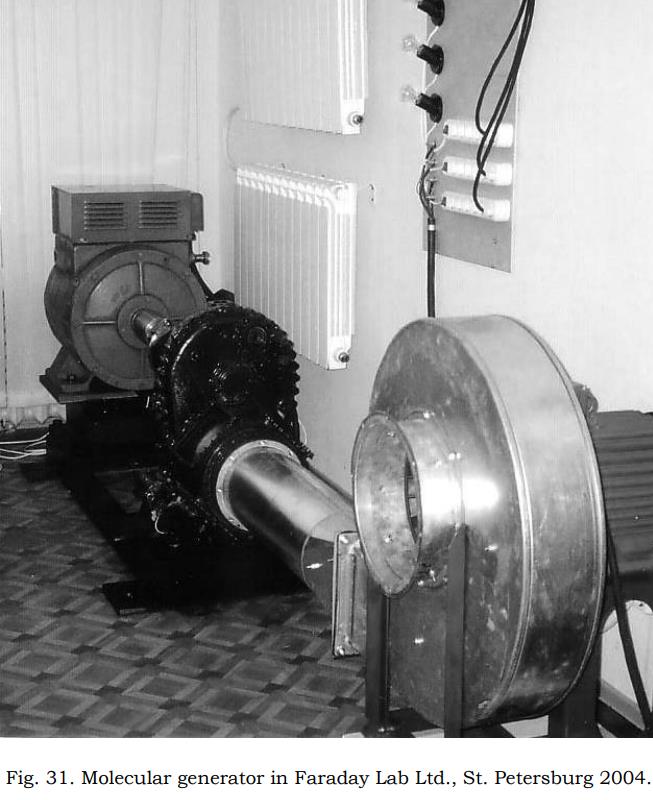

The experimental setup produced about 3 kW of power for incandescent lamps without increasing fan consumption; fan power dropped when the turbine-fan duct was closed.
Replication Status
No independent replication reported; the project was terminated in 2005 and the experimental setup was sold to another company.
Limitations
- Requires external electric fan to circulate air
- Overall efficiency insufficient for fully autonomous operation
- Technical problems with turbine gearbox
- Project halted due to lack of funding
Red Flags
- Claims of fuel-free power may be overstated
- No peer-reviewed validation or independent replication
- Project terminated without achieving autonomous operation
