Goal
Purify, magnetize, and alkalize water to produce microcluster, hydrogen-rich water with claimed health benefits.
Problem
Poor water quality, lack of beneficial minerals, acidic water, and presence of contaminants that affect human health.
Concept Summary

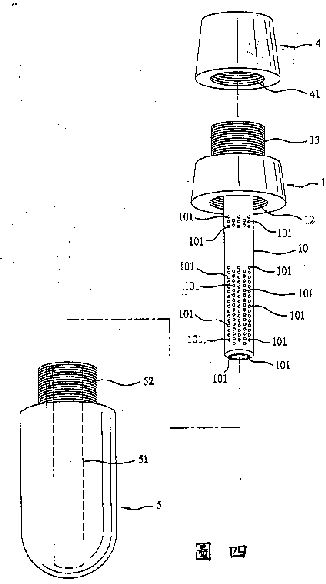

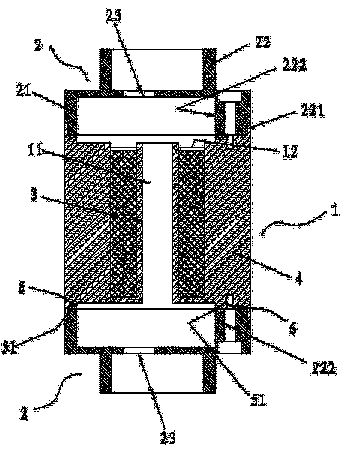

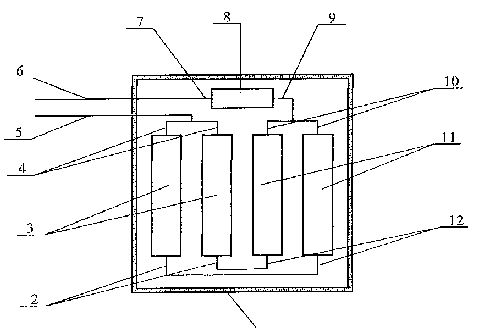

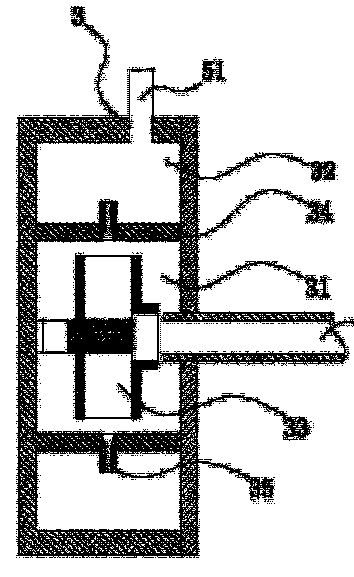

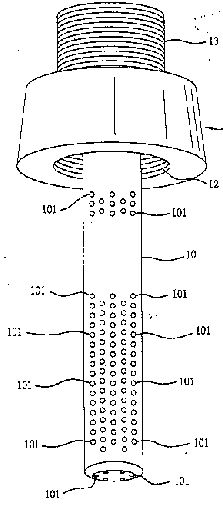

The patents describe a family of devices that combine ceramic filtration, magnetic treatment, weak electrolysis, and mineral additives to generate water with a micro-cluster structure, weak alkalinity, high dissolved oxygen, and hydrogen enrichment. The core device consists of a non-conductive container, a thin metal element with discharge grooves, and an external alternating-magnetic-field coil powered by AC. The magnetic field and weak electrolysis create micro-clusters, while ceramic and mineral filters provide alkalinity and trace minerals.
Principles
- Magnetization
- Weak electrolysis
- Micro-cluster formation
- Ceramic filtration
- Alkalinization via mineral additives
Scientific Domains
Materials
- Activated carbon
- Tourmaline powder
- Medical stone powder
- Muyu stone
- Germanite
- KDF (copper-zinc alloy)
- Negative-potential material
- Stainless steel (304)
- Ceramic filter tube
- Thin metal body (e.g., copper or alloy)
- Non-conductive plastic container
- Magnet exciting coil (copper wire)
- Ultrafine Guhaiyan mineral granules
- Magnesium powder
- Adhesive binder
- Borosilicate glass powder
Mechanisms of Action
- Alternating magnetic field induces structural changes in water molecules

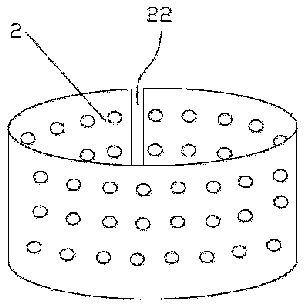

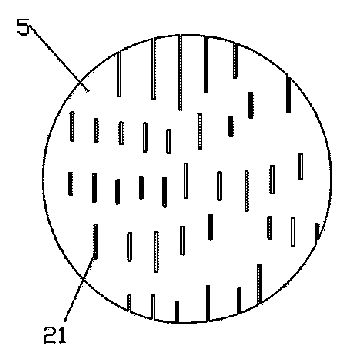

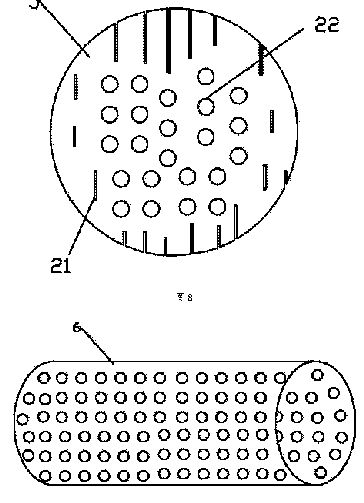

- Discharge grooves on a metal element cause weak electrolysis, producing micro-clusters

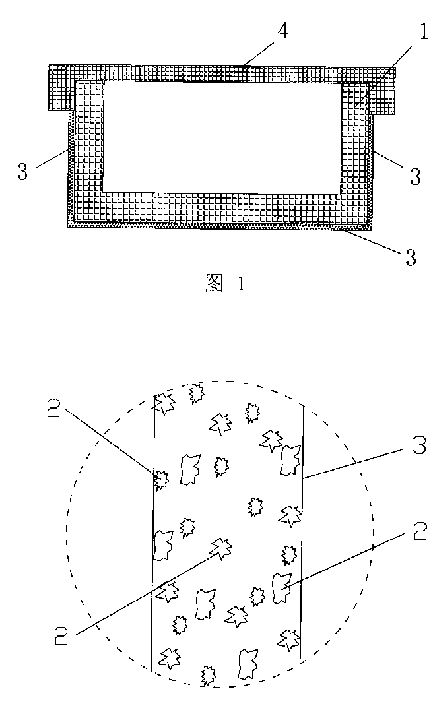

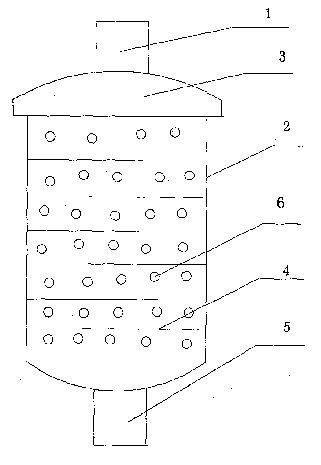

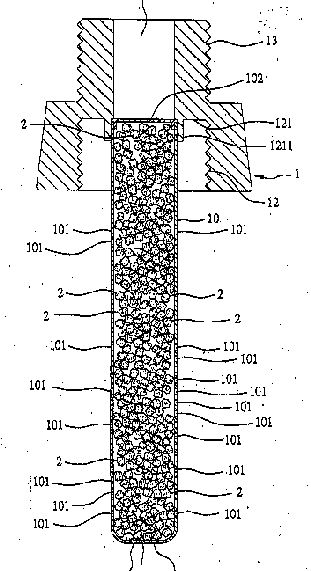

- Ceramic filter media (activated carbon, tourmaline, medical stone, etc.) remove contaminants and add trace minerals
- Mineral additives raise pH and increase dissolved hydrogen
Energy Sources
Applications
- Drinking water for personal health
- Aquaculture and hydroponic cultivation

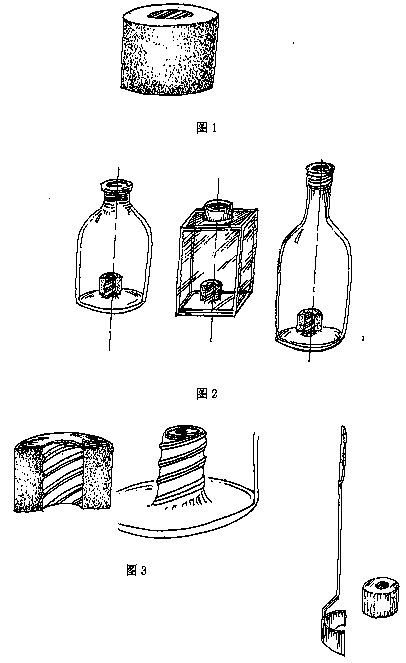

- Portable health bottles for on-the-go use
Claimed Performance
Water becomes weakly alkaline, high in dissolved oxygen, exhibits a micro-cluster structure, reduces free radicals, inhibits tumor cell propagation, and helps restore acid-base balance in the human body.
Experimental Evidence
The patent notes that the prepared water shows a small 170 NMR peak width at half height and a pH greater than 7 (e.g., 7.2-9.2) with 17-O NMR values between 45-79, indicating micro-cluster formation and alkalinity.
Limitations
- Health benefit claims lack peer-reviewed clinical data
- Performance metrics are limited to NMR and pH measurements
- Reliance on proprietary mineral blends
- Scalability and cost not demonstrated
Red Flags
- Strong health and anti-cancer claims without independent verification
- Potential pseudoscientific language (e.g., "free radical reduction", "micro-cluster" as a health vector)
- No disclosed clinical trials or third-party testing
