Goal
Accelerate healing of bone fractures, cartilage damage, and connective-tissue injuries.
Problem
Non-union bone fractures, degenerative joint disease, cartilage and connective-tissue damage.
Concept Summary

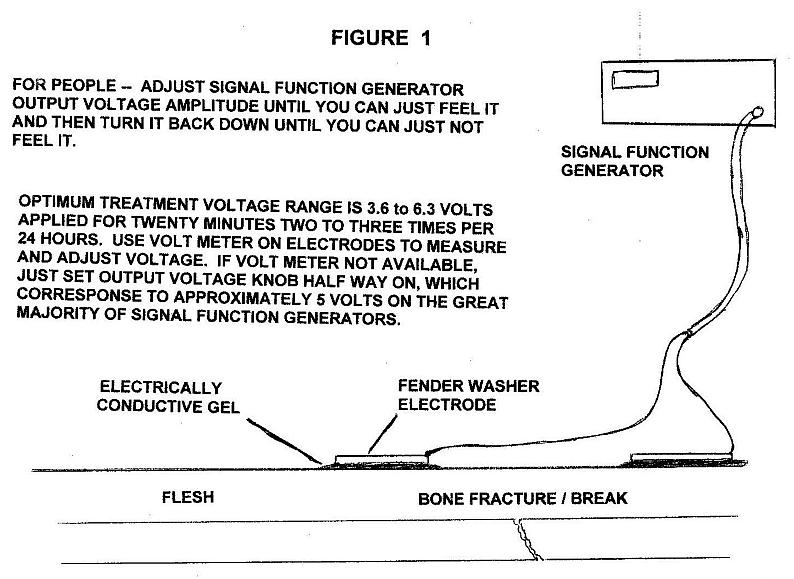

A 1028 cycles-per-second (~=1 kHz) voltage square-wave is applied across the injured region using surface electrodes. The signal is generated by an inexpensive function generator set to 3.6-6.3 V amplitude and applied for 20-45 minutes two to three times per day (or overnight for soft-tissue work). The electric field and induced eddy currents are claimed to stimulate osteogenesis and tissue regeneration.
Principles
- Pulsed electric field (PEF) stimulation
- Voltage square-wave at 1028 Hz
- Induction of eddy currents in conductive body fluids
Scientific Domains
Materials
- Ultrasound conductive gel
- Fender washers (steel)
- Masking tape
- Alligator clips
Mechanisms of Action
- Electrical stimulation of osteoblast activity
- Magnetically induced eddy currents producing anti-microbial and anti-viral effects
- Modulation of cellular signaling via alternating electric fields
Energy Sources
Applications
- Veterinary fracture treatment
- Human orthopedic fracture repair
- Cartilage and soft-tissue regeneration
Claimed Performance
Rapid healing of a horse's non-union fracture; complete recovery of a human foot fracture confirmed by X-ray; regeneration of a degenerated hip joint after two months of nightly treatment; no adverse effects reported for up to 8 hours of continuous exposure.
Experimental Evidence
Anecdotal reports from multiple individuals (horse, human foot, human hip) with X-ray verification of bone healing; self-reported symptom improvement; planned microscopy monitoring of cell cultures (future work).
Replication Status
Multiple independent anecdotal replications reported by users; no formal peer-reviewed studies or controlled trials documented.
Limitations
- Evidence limited to anecdotal case reports
- No controlled clinical trials or peer-reviewed data
- Optimal dosage and treatment schedule not scientifically established
Red Flags
- Lack of independent scientific validation
- Potential placebo effect in self-reported outcomes
- Claims of tissue regeneration without quantitative data
