Goal
To harvest ambient atmospheric static electricity and convert it into a continuous, regular electrical current that can be used for industrial and domestic applications without ongoing energy consumption or maintenance.
Problem
Existing methods of capturing static electricity yield only irregular, very low-current (few mA) outputs that are impractical for real-world use.
Concept Summary
The invention describes an electrostatic system consisting of a main capacitor equipped with electrostatic film-valves, a neutralizer/exciter, and an atmospheric collector. The device automatically raises the potential of ambient static electricity, stores it in the capacitor, and continuously discharges it through a regulated circuit, providing a steady electrical output without mechanical or chemical input.
Detailed Description

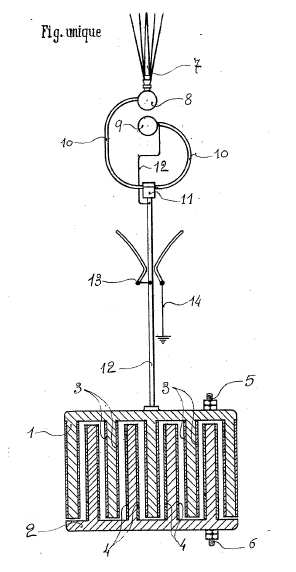

The patent outlines a self-sustaining electrostatic 'ram' placed in an environment that contains natural static electricity. A main capacitor (1) is charged via electrostatic film-valves (3) that elevate the ambient potential. A neutralizer/exciter (2) with discharge valves (4) expels stored charge back to the main capacitor, creating a continuous excitation loop. An atmospheric collector (7) feeds secondary excitation capacitors (8 and 9) that are also linked to the main capacitor. The system includes safety devices (13) and a ground discharge path (14). The device claims to operate indefinitely, providing power for medical electro-therapy, telephone operation, electric clocks, battery recharging, and cheap wiring installations that can be bare, uninsulated, and even submerged in water without loss.
Principles
- Electrostatic induction
- Capacitor charging and discharge
- Atmospheric electricity harvesting
- Electrostatic pump (ram) operation
- Self-exciting circuit
Scientific Domains
Materials
- Dielectric film (for valves)
- Metal plates/conductors
- Insulating material for fixing assembly
Mechanisms of Action
- Electrostatic capacitor
- Film-valve electrostatic pumps
- Neutralizer/exciter for charge regulation
- Atmospheric collector electrode
- Grounded surge protection
Energy Sources
Applications
- Medical electro-therapy
- Electro-breeding (animal/plant growth)
- Telephone power supply
- Electric clocks
- Battery/accumulator recharging
- Cheap electrical wiring installations
Claimed Performance
Provides a perfectly regular, continuous electrical current with enough power for industrial and domestic uses; operates indefinitely without wear, maintenance, or external energy consumption.
Limitations
- No quantitative performance data provided
- Reliance on ambient static electricity, which is highly variable
- Vague description of key components (film valves, material properties)
- No independent experimental verification
Red Flags
- Claims of perpetual, free energy without consumption
- Lack of experimental data or peer-reviewed validation
- Vague terminology and undefined material specifications
