Goal
Provide a non-invasive diagnostic method that captures the electromagnetic-induced gas-discharge glow of biological objects and extracts physiological and psychological parameters.
Problem
Traditional Kirlian photography requires photographic paper, long development times, and yields low-resolution, low-sensitivity images that hinder quantitative medical diagnostics.
Concept Summary
A high-voltage electrode creates an electric field across a dielectric plate on which the object (e.g., a fingertip) is placed. The field induces a gas-discharge glow around the object. An optically coupled camera records the glow in real time, and computer software analyses multi-parameter images to produce diagnostic statements about stress, health, or psychophysical state.
Detailed Description

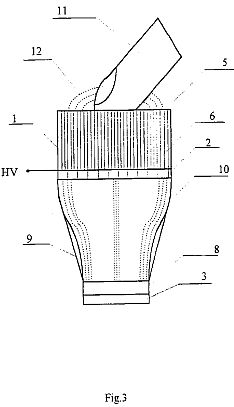

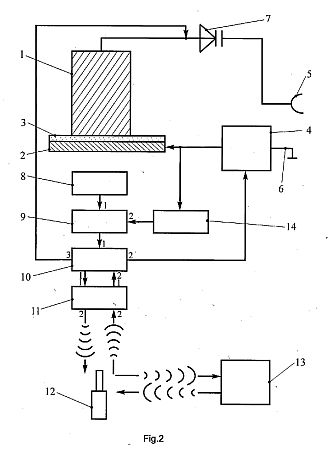

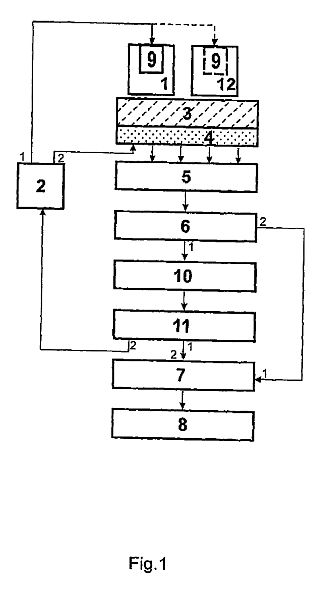

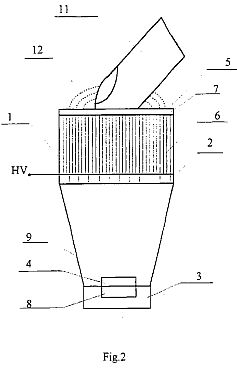

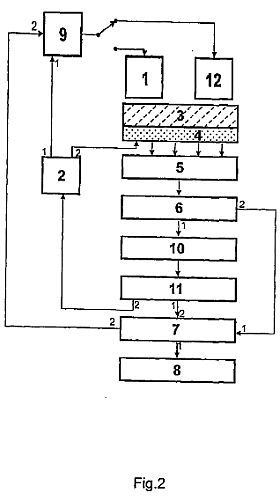

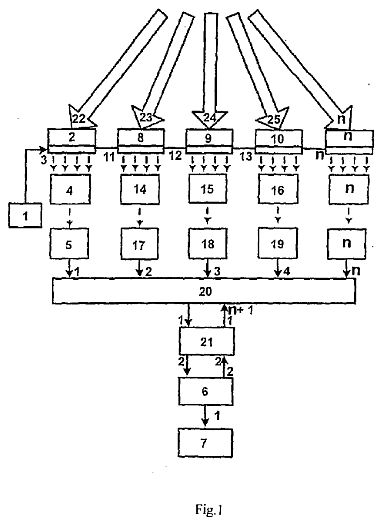

The GDV system consists of a high-voltage power supply, a transparent conductive electrode (often a metallic mesh), a dielectric plate with a transparent insulating coating, and an optical fiber light guide that directs the discharge glow to a television camera. The camera feeds video signals to a computer where specialised software calculates parameters (e.g., area, intensity, dynamics) and correlates them with physiological or psychological conditions. The device can be used on living tissue, non-organic objects, and is marketed for stress monitoring, medical treatment tracking, and psychical assessment.
Principles
- High-voltage electric field generation
- Gas-discharge (avalanche or sliding) luminescence
- Optical capture of discharge glow
- Computer-based image processing and parameter extraction
Scientific Domains
Materials
- Transparent conductive electrode (metallic mesh with conductive coating)
- Dielectric plate (optically transparent insulating material)
- Optical fibers / light guide
- Glass or acrylic support
- High-voltage power supply components
Mechanisms of Action
- Electric field induces ionisation of gas near the object's surface
- Resulting plasma emits visible light (glow)
- Optical system transmits glow to a camera
- Software analyses spatial-temporal characteristics of the glow
Energy Sources
Applications
- Medical diagnostics (stress, health monitoring)
- Therapeutic progress tracking
- Research on bio-energy and physiological correlates
- Psychic ability assessment (controversial)
Claimed Performance
Instantaneous capture of Kirlian-type images with higher sensitivity and resolution than conventional photographic methods; enables real-time stress monitoring and medical treatment assessment.
Experimental Evidence
The article cites usage of GDV for measuring stress, monitoring medical treatments, and photographing a dying person to observe changes in the "aura". It mentions that many research institutions and a commercial company (MedEO) employ the GDV device.
Replication Status
Used by multiple research institutions (IPMO, Cybernetics Institute, Montreal University, etc.) and commercial providers (MedEO, Kirlionics Technologies International).
Limitations
- Interpretation of GDV parameters is not universally validated
- Lack of peer-reviewed quantitative studies
- Potential for subjective bias in image analysis
- Equipment cost and need for high-voltage safety measures
Red Flags
- Claims of visualising "souls" and differentiating genuine psychics
- Absence of independent replication in peer-reviewed literature
- Potential classification as pseudoscience by mainstream scientific community
