Goal
Provide a compact, lightweight energy storage/ generation system that can replace batteries with up to ten times greater capacity.
Problem
Limited energy density and weight of conventional batteries for vehicles and portable power.
Concept Summary
A mechanical rotary piston engine that combusts conventional fuels and uses an electromagnetic converter (induction armature, coils, magnetic elements) to directly convert the piston's mechanical motion into electrical energy, eliminating the need for a separate generator, starter, or gearbox.
Detailed Description

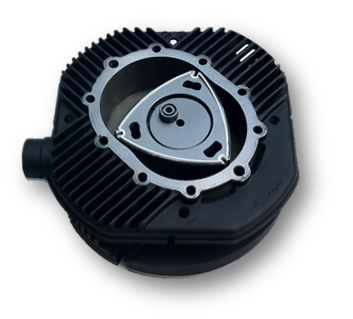

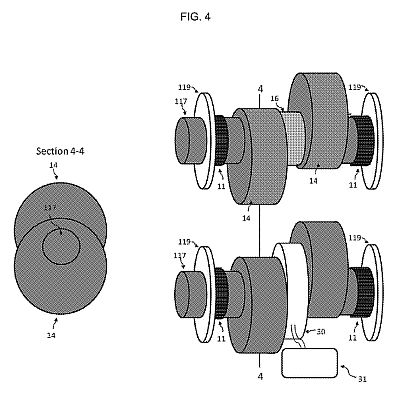

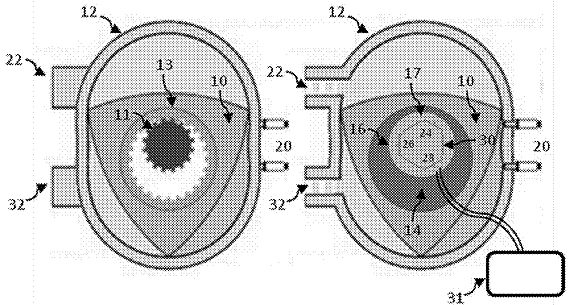

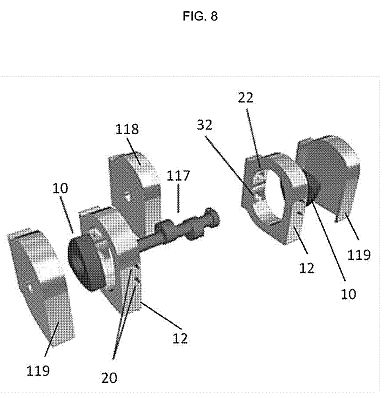

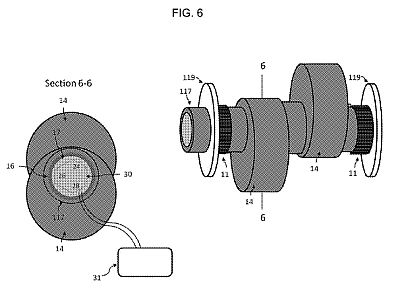

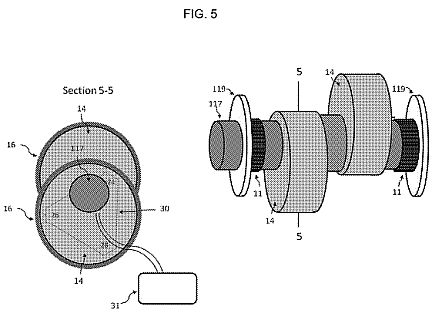

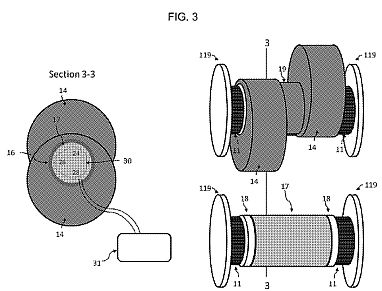

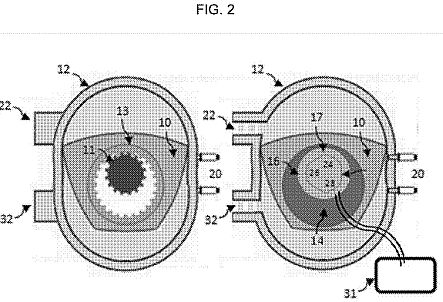

The RPG consists of a rotary piston sliding inside an epitrochoid-shaped housing forming rotor chambers. An eccentric lobe drives the piston, while a power converter with armature and coils converts mechanical motion to electricity during a power stroke and can also drive the piston using electrical energy in other strokes. The engine can run on gasoline, kerosene, propane, natural gas, ethanol, methanol, or hydrogen. It may include thermal controllers, reaction triggers (spark plug, igniter), and an energy management system with storage devices. The design is intended for use as a range-extender in electric vehicles or as a portable power source.
Principles
- Electromagnetic induction
- Internal combustion
- Rotary piston motion
- Variable reluctance/inductance conversion
Scientific Domains
Materials
- Copper
- Steel
- Permanent magnet material
Mechanisms of Action
- Chemical energy of fuel -> mechanical energy via combustion
- Mechanical rotation of piston -> electrical energy via induction armature and coils
Energy Sources
Applications
- Electric vehicles (range extender)
- Portable power for weekend trips
- Auxiliary power unit for aerospace
Claimed Performance
Potentially ten times greater energy storage capacity than a typical battery.
Limitations
- No experimental data demonstrating operation
- Early-stage technology, not yet prototyped
- Performance depends on fuel type and engine control
Red Flags
- Lack of demonstrated prototype or test data
- Claims of 10x battery capacity without quantitative backing
