Goal
Enable crop cultivation on sterile desert sand with dramatically reduced water consumption.
Problem
Water scarcity, desertification, soil degradation, and the need for soil-less agriculture.
Concept Summary

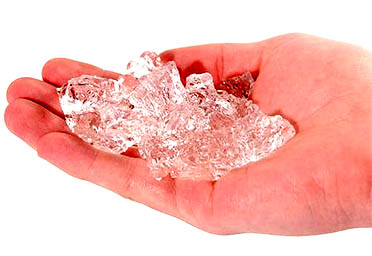

A thin hydrophilic hydrogel membrane acts as a water-retaining carrier that supplies water and nutrients to plant roots while preventing disease agents. The hydrogel is engineered to have low calcium-ion adsorption (<50 mg g^-^1) to avoid root inhibition, and it can retain water at a magnification of >=100x in ion-exchange water.
Detailed Description
The invention replaces soil with a microns-thick hydrogel film that lets water, ions, amino acids and sugars pass to the roots while keeping pathogens out. Roots remain dry but draw water and nutrients from below the membrane, and oxygen from the air. The hydrogel is a polymer network (polyacrylic-acid-type) modified to limit calcium-ion absorption and to contain carboxyl groups and optionally calcium salts. The system has been tested in Dubai and is commercialized by the company Mebiol.
Principles
- Water retention and controlled release
- Selective ion adsorption (low calcium uptake)
- Hydrophilic membrane permeability
Scientific Domains
Materials
- Polyacrylic acid polymer hydrohydrogel-forming polymer)
- Calcium-ion absorbing polymer
- Carboxyl-functionalized polymer chains
- Calcium salt of carboxyl groups (optional)
Mechanisms of Action
- Hydrogel absorbs and stores water up to 100x its dry weight
- Diffusion of water, nutrients, and gases through the hydrogel to plant roots
- Prevention of calcium-ion deficiency by limiting calcium adsorption
Applications
- Desert agriculture
- Urban rooftop farming
- Cultivation on sand, ice, or concrete
Claimed Performance
80 % less water than needed in traditional farming; water-absorption magnification >=100x in ion-exchange water.
Experimental Evidence
Successful field testing in Dubai's desert environment; laboratory root-origination tests showing reduced inhibition when calcium-ion absorption is <50 mg g^-^1.
Replication Status
Commercialized by Mebiol company; technology patented (JP2008048751, EP0945052).
Limitations
- Requires precise control of calcium-ion adsorption
- Long-term durability of the hydrogel in harsh environments not fully proven
- Potential cost of polymer production at large scale
Red Flags
- Claims of 80 % water savings are based on limited field data
- Commercial statements may overstate performance without independent verification
