Goal
To destroy pathogenic microorganisms and cure diseases (e.g., cancer) by applying resonant radio-frequency energy.
Problem
Cancer and other infectious diseases caused by microorganisms.
Concept Summary
The Beam Ray Machine is a frequency-generator device that produces a modulated radio-frequency (RF) electromagnetic field. Rife claimed that each pathogen has a specific Mortal Oscillatory Rate (M.O.R.) and that exposing the organism to its resonant frequency would inert or destroy it. The device contains a rotary switch for frequency bands (20 Hz-200 kHz), a fine-adjustment dial for the carrier frequency, and a modulation-depth control that varies the voltage applied to the internal grid.
Detailed Description

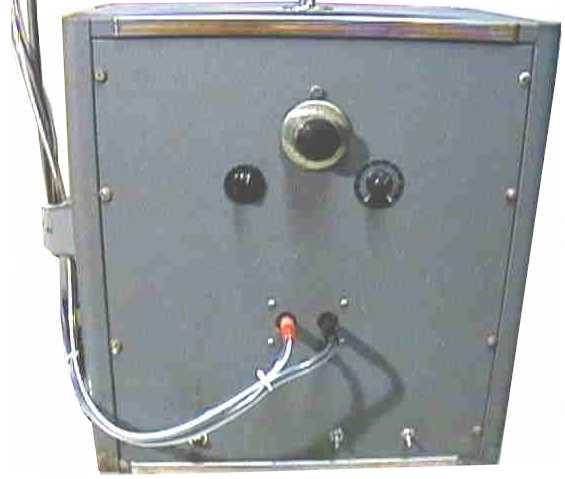

The machine has three external controls: a 4-way rotary switch selecting one of four frequency-band ranges (20 Hz-200 Hz, 200 Hz-2 kHz, 2 kHz-20 kHz, 20 kHz-200 kHz); a central frequency dial calibrated in 0-100 steps with a resolution of 1/2 division; and a modulation-depth knob that varies the grid voltage from 0 to 50 V p-p (~=115 % modulation). The actual output frequency for a given dial setting follows a third-degree polynomial curve, not a linear relationship. Historical diary entries show treatment protocols dated to 1939. Rife asserted that the device could halt the motility of typhoid bacteria and, by extension, cure cancer and other diseases, though no independent verification exists.
Principles
- Resonant frequency destruction
- Electromagnetic modulation
- Radio-frequency energy application
Scientific Domains
Materials
- Metal (copper, steel)
- Glass (vacuum tube envelope)
- Ceramic (grid insulators)
Mechanisms of Action
- Inducing resonant vibration in pathogen constituents
- Disrupting cellular processes via RF fields
- Thermal and non-thermal effects of high-voltage modulation
Energy Sources
Applications
- Cancer treatment
- Infectious disease treatment
- Alternative health therapy
Claimed Performance
Specific frequencies (10 kHz-100 MHz range) destroy targeted microorganisms; claimed cure of cancer, typhoid, AIDS, and other diseases.
Experimental Evidence
Rife reported that exposure of typhoid rods to the machine halted their motility; no independent, peer-reviewed data were provided.
Replication Status
No independent verification; mainstream scientists consider the claims unsubstantiated.
Limitations
- Lack of peer-reviewed scientific validation
- Potential delay of proven medical treatment
- Unclear safety parameters for high-voltage RF exposure
Red Flags
- Claims of curing cancer without clinical evidence
- Device linked to patient deaths when used instead of conventional therapy
- Marketing through pyramid-like schemes and fraudulent claims
