Goal
Convert random mechanical shock energy into usable electrical power while providing high-efficiency shock absorption for structures and devices.
Problem
Wasted mechanical energy from impacts, vibrations, wind, waves, and other sources; need for broadband, scalable shock-absorbing and energy-harvesting solutions for buildings, vehicles, protective gear, and infrastructure.
Concept Summary

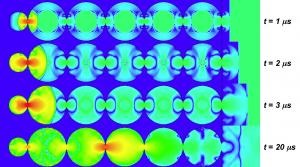

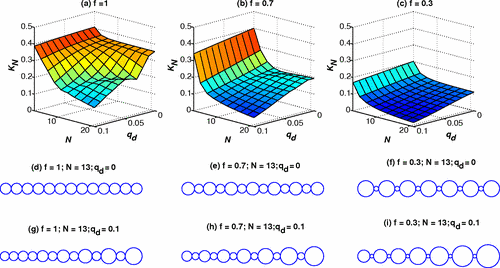

A one-dimensional chain of tapered spheres (granular alignment) with interstitial grains traps and redistributes impact energy as solitary nonlinear waves. The organized wave train is then harvested by an electrical converter (piezoelectric, electromagnetic, etc.) to produce electricity. The decorated, tapered chain dramatically increases shock absorption (>80 % of input energy) and can be scaled down to millimetre-size grains for high-frequency vibrations.
Detailed Description

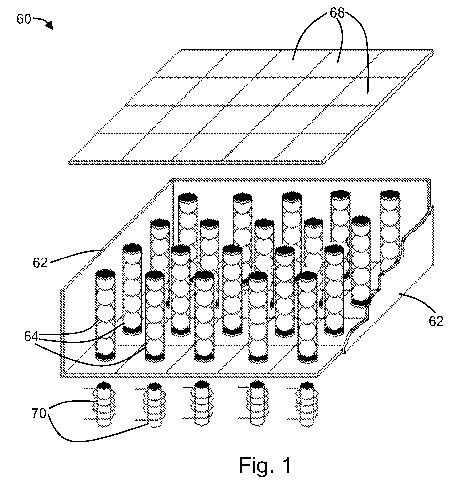

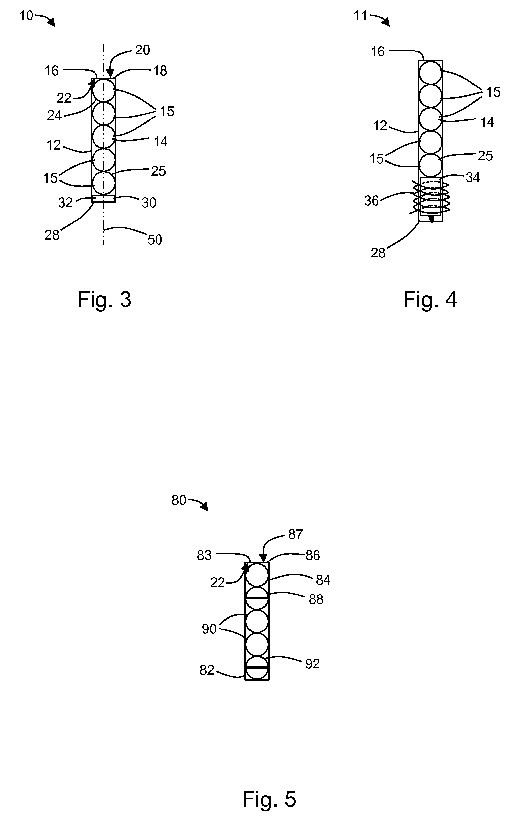

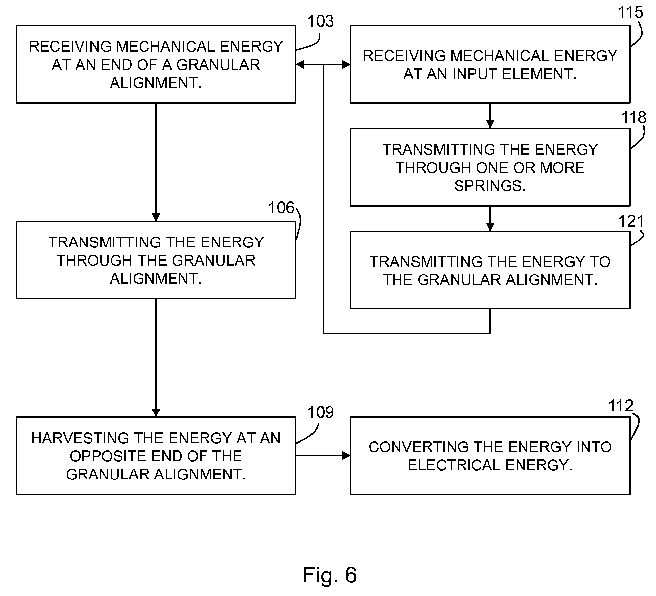

The invention consists of a housing containing a linear array of spherical grains whose diameters decrease along the chain (tapered). Small interstitial grains (~=1 mm or smaller) are placed between the larger spheres, creating a "decorated" chain. When a mechanical impulse enters the input end, the nonlinear Hertzian contacts cause the formation of solitary waves that travel through the chain, with energy progressively trapped and dissipated as heat and sound. An electrical converter (piezoelectric material, magnet-solenoid, or other transducer) is mechanically coupled to one of the grains, converting the organized mechanical motion into electrical energy. Simulations and experimental work show >50 % improvement over previous tapered chains and >80 % overall shock absorption. The system is claimed to be scalable from a few grains to large arrays, capable of handling impacts at several hundred metres per second, and suitable for harvesting energy from wind, waves, vehicle drag, and structural vibrations.
Principles
- Nonlinear wave propagation in granular media
- Hertzian contact mechanics
- Energy trapping and dissipation via interstitial grains
- Conversion of mechanical motion to electricity (piezoelectric, electromagnetic)
Scientific Domains
Materials
- Metal or polymer spheres (grains)
- Housing material (metal, plastic, or composite)
- Piezoelectric ceramics (optional)
- Magnets and solenoid coils (optional)
Mechanisms of Action
- Shock wave attenuation through tapered granular chain
- Solitary wave formation and directed energy transfer
- Mechanical-to-electrical conversion via coupled transducer
Energy Sources
Applications
- Protective gear (bullet-proof vests, helmets)
- Vehicle vibration damping
- Structural blast mitigation for bridges and buildings
- Energy harvesting from wind, waves, and infrastructure vibrations
Claimed Performance
Absorbs >80 % of input shock energy; >50 % improvement over previous tapered chains; power density up to ~1000 W/kg in vehicle-drag scenario; efficiency of ~10 % considered reasonable for broadband harvesting.
Experimental Evidence

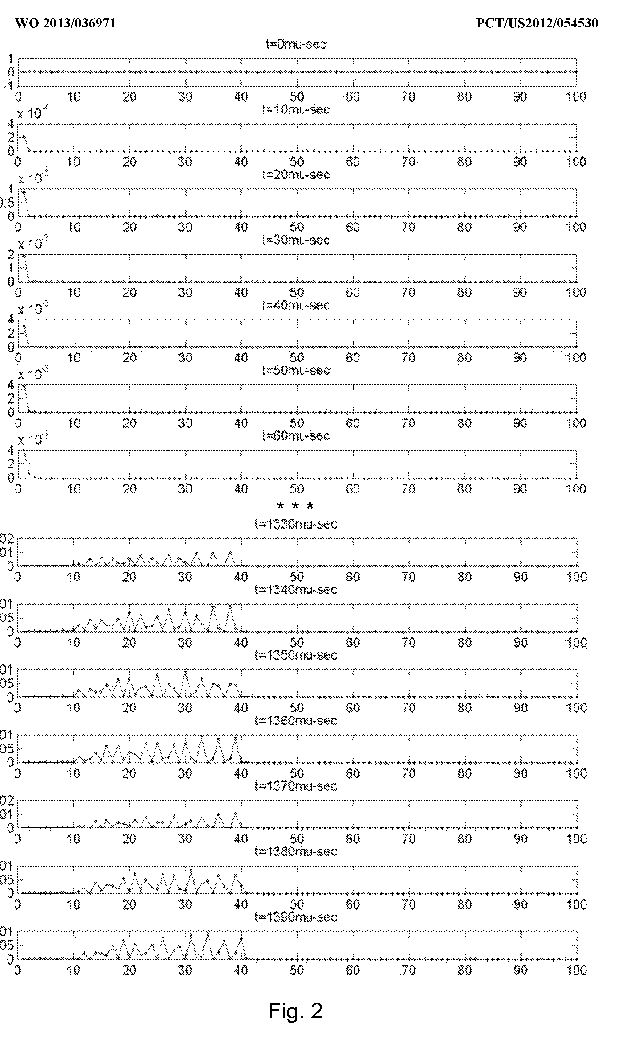

Computer simulations (Phys. Rev. Lett. 97, 155502, 2006) and experimental confirmations reported in Granular Matter (2004) by Colorado School of Mines/NASA Glenn and Physical Review E (2006) by University of Santiago (Chile) and SUPMECA (Paris).
Replication Status
Independent experimental verification by Colorado School of Mines/NASA Glenn Research Center, University of Santiago (Chile), and SUPMECA (Paris).
Limitations
- Efficiency limited to ~10 % for broadband sources
- Potential material fatigue under repeated high-impact loading
- Scaling to very large structures may require complex housing designs
